Flex dot, LED strip, LED string for freedom lighting design
Flex dot, LED strip, LED string for freedom lighting design
Flex Dot is designed for extrairdinary effects and expansive installations without the constraints of fixure size, shape, or space, it allows LED video displays to break free from the flat, rectangular format and assume virtually any form. Each string consists of 40 (or 32) individually addressable LED nodes, with high light output, which affords long distance view for buidling, architucture, perimeter lighting, large scale signature, and building-covering video displays.
( Building lighting)
Standard and customized lengths and dots spacing
A string of FlexDOTs can in fact extend to 600 pixels, more than fourfold (four times) as many as competitive products. The string can be cut into any desired length or number of pixels. Flex Dots are available with several different pitch size, the standard size we have are P75, P100, P150, P200, which can support virtually any lighting video design. Custom pixel spaced strings are available to order.
( fixed on the cloth)
Intelligent easy controller
The FlexDOT concept is simple – individually controlled, intelligent, full color pixels mounted on a flexible cable. Each pixel (dot) consists of a bright RGB LED driven by its own processor and individually addressable for independent control of color, special effects, and animation. Pixels can be arranged as needed and later mapped to the image using pixelmapping software.
it need not special hardware for support, any PC and laptop can control it. And the independent controller with CF memory card can support the system to display the video automatically.
( on the flexible board )
FlexDOT is light and requires substantially less supporting hardware than conventional LED display solutions. The flexible cable mounting gives a high degree of creative freedom and an IP66 rating in combination with a wide operating temperature range of -20° to +50°C means that it can be used in virtually any environment, even outdoors.
 |
| whole structure |
The Example of Installation method :
provided and supported by Fisher, mail/MSN: yuchao622@hotmail.com, skype: fisher201223
Design flexibility
This flexible, lightweight video solution is efficient and long-lasting and can be arranged into nearly any form to provide designers unlimited options to enhance interior and exterior spaces.
This flexible, lightweight video solution is efficient and long-lasting and can be arranged into nearly any form to provide designers unlimited options to enhance interior and exterior spaces.
Features
- Can assume any form for creative freedom
-
- Individually controllable pixels
 |
| flex dot on the airballoon semi-sphere |
-
- Independent control of color, special effects and animation
 |
fixed on the ceiling
|
-
- Very bright, 2.5 cd per pixel
 |

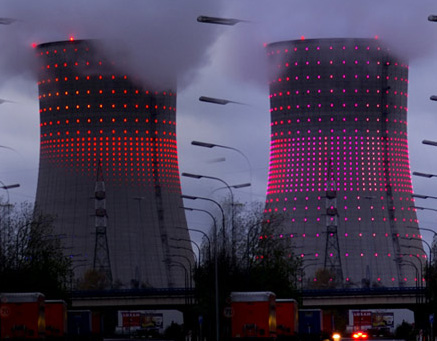

| on the cooling tower facade |
- 75mm,100 mm 1500mm and 200 mm or customized pixel spacing
- IP65 for use indoors or out
-
- Efficient and long-lasting
 |

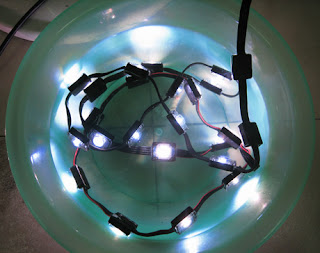

| dip in water |
Perfect for stage sets, clubs, retail, outdoor environments
 |
single string
|
Flexible LED curtain, soft LED display for stage, DJ and advertisement
flexible LED curtain, soft LED display for stage, DJ and advertisement with low cost
soft LED display is a dynamic drapery based on advanced LED illumination technologies and control sytems.
Made of high-quality drapery
the face marterial of soft LED display is a kind of synthetic dynamic fabric on which there is a layer of ruber which is waterproof, fire retartant, durable and wrinkle resistant. Ideal for outdoor venues and high humidity climates, and because it doesn't hold wrinkles, it's great for touring shows.
Designed for easy transport and simple setup
soft LED display is lightweight unit that fits in a single road case. The power/data supplies and controllers are also cleanly integrated into compact road cases ready to plug and play.
the characteristic is as below,
1. SMD RGB 3-in-1LED, small, bright and colorful, can display clear and smooth image;
2. Soft and flexible, can be folded, curved and rolled like a paper, suitable for many shape application;
3. waterproof, fire retardant, durable, against dirty;
4. Small volume and light weight，easy installation and transportation;
5. Multipurpose function, suitable for various situation;
6. Easy connection and combination;
7. customized size and elegant shape.
video online:
for pitch 20mm LED curtain, it is just 7.8kgs per square meter.
80% transport cost saving;
13 square meters ( 4 pieces of 1.28x2.56m) of pitch 20mm LED curtain can be put in one flight case, the flight case dimension with wheel is 137 cm length x 70 cm width x 85 cm height ( totally 0.8 CBM), you can transport and move the flight case easily.
80% installation time saving;
( just need to hang the LED curtain on the wall or on the truss, without any frame or cabinet).
We develop this kind of product mainly applying to portable and mobile stage lighting, TV studio, concert, night bar, disco hall and advertisement.
I hope that our product can satisfy you with its light-weight, easy installation,foldability and flexibility, I think it is your best choice.
( suitable for any irregular shape )
flexible LED curtain FLC-1600 P25 circle /circular/rounnd LED display
flexible LED curtain FLC-1600 P25 circle LED display
Youtube:http://www.youtube.com/watch?v=-FR_l--yH_E&list=UU-pst3aajUIxJI1SNHEHVGQ&index=23&feature=plcp
The controlling system of soft LED screen
controlling system of soft LED screen
Dear Michael Beeson,
There is no problem to run DVI video source.
we have two kind of controller, DVI video source controller and network card video source controller.
DVI video source controller includes two parts, sending card ( linsn sending card 801, we name it as 801 or HC-103) and receiving card ( we name it as HC-101), the software is LED studio, this kind of controller need DVI port as support. PC video signal is sent out from PC DVI port to receiving card to receiving card to LED curtain display.
If your PC have not DVI pot, you can add a USB to DVI convertor.
If you want to connect DVD, TV and live camera video sources, you will have to add a video processor.
Network card video source controller contains only receiving card ( we name it as HC-102), the software is LED show, it need not sending card, but it need 1000Mbps ( 1 Gigabit ) network card as support. PC video signal is sent out from PC network card to receiving card to LED curtain display.
Most of the laptop have 1 Gigabit network card itself, so you can connect laptop directly.
If you want to connect DVD, TV and live camera, you will have to add a sending card and a video processor.
For above controller, you can use other third party software like Resolume, Arkaos and Madrix to edit and play video.
I'm really sorry that I cannot make sure that your device will be compatible with our controller.
If Matrox have DVI video source output, you can choose the first controller;
If Matrox have 1 Gigabit port, you can choose the second controller.
Round / Circular LED Curtain screen: flexible LED curtain with irregular shape
Round / Circular LED Curtain screen: flexible LED curtain with irregular shape
soft LED screen with round shape
Flexible led curtain is our Patent Product
the flexible LED video curtain is made by nylon fabric mixing with rubber, so the fabric is strong enough, waterproof and fire retardant, there is a layer of floss we plant epecially on the front of the fabric, so it looks harmoniously and beautiful.
for our product, we provide one year guarantee, within one year after shippign the goods, we provide technical support, spare parts and maintain guide.
you are welcome to visit our factory at any time, you have have an exact look at our flexible LED curtain.
Flexible LED curtain is our patent product ( Chinese national patent), we have sold our flexible LED curtain since 2008, we have client all over the world, but we did not ever sell our product in Chinese market, you cannot find our product in Chinese market.
Together with flexible LED curtain, we provide hanging system and mounting system, you just need to prepare a PC and hang the LED curtain on the truss. ( picture attached).
we provide you the basic software together with flexible LED curtain, the software we provided is for free. YOu can use other third party software such as Madrix, resolume, Arkaos which can help you edit and play vision effect.
The power adapter is installed in the inner of flexible LED curtain, you just need to prepare a socket with AC 90 V to AC 264V. You can not find any power device from the surface of flexible LED curtain, the power plug is prepared according to your loacl application.
For more info ,please read my youtube:
1.http://www.youtube.com/user/jamesyichina
2.http://www.youtube.com/watch?v=cBUqRRYMdu0
3.http://www.youtube.com/watch?v=DTMiObFjJ74
The size of flexible LED curtain
The size of flexible LED curtain, please calculate as per following regulation / rule:
1.Model FLC-3000,
the size must can be divided by 0.292m, like 0.876m, 1.168m, 1.46m, 1.752m, 2.044m, 2.336m, 2.628m, 2.92, 3.212 ...
the minimum size we can make is 1.46m width by 1.752m height,
the single panel should be within 5 square meter
2.Model FLC-2500,
the size must can be divided by 0.32m, like 0.96m, 1.28m, 1.6m, 1.92m, 2.24m, 2.56m, 2.88m ...
the minimum size we can make is 0.96m width by 1.92m height,
the single panel should be within 6 square meter.
3.Model FLC-1600,
the size must can be divided by 0.4m, like 0.8m, 1.2m, 1.6m, 2m, 2.4m, 2.8m, 3.2m ...
the minimum size we can make is 1.2m width by 1.6m height,
the single panel should be within 7 square meter.
4.FLC-1000,
the size must can be divided by 0.48m, like 0.96m, 1.44m, 1.92m, 2.4m, m, 2.88m, 3.36m ...
the minimum size we can make is 1.44m width by 2.4m height,
the single panel should be within 10 square meter.
5.FLC-700,
the size must can be divided by 0.6m, like 1.2m, 1.8m, 2.4m, 3m, 3.6m, 4.2m ...
the minimum size we can make is 1.2m width by 2.4m height,
the single panel should be within 18 square meter.
6.FLC-400,
the size must can be divided by 0.8m, like 1.6m, 2.4m, 3.2m, 4m...
the minimum size we can make is 1.6m width by 2.4m height,
the single panel should be within 20 square meter.
7.FLC-200/ FLC-200A,
the size must can be divided by 1.2m, like 1.2m, 2.4m, 3.6m ...
the minimum size we can make is 1.2m width by 2.4m height,
the single panel should be within 20 square meter.
8.FLC-100,
the size must can be divided by 1.6m, like 1.6m, 3.2m, 4.8m, 6.4m...
the minimum size we can make is 3.2m width by 3.2m height,
the single panel should be within 20 square meter.
When you have several flexible LED curtains ( like 100 pieces ) with small panel, you can connect them together vertically and horizontally to make a larger screen as you want.
Above is collected by James Yi ( marketing@huasun-tech.com), if you have any problem, please feel free to contact me.
It is our normal price, if we can make real business, we will offer you the price with large discount.
when you have detailed size ( like 2 x3 m ... ), and the model ( like FLC-700, FLC-400..), I will make quotation with detail information.
